How to Test Waterproofing for Flood and Leaks?
Waterproofing is important for keeping your home protected from water damage. Whether you have just completed roof waterproofing, bathroom waterproofing, or wall waterproofing, testing the work is an essential step. Testing ensures the surface is fully sealed and ready to face rain, moisture, and regular use. Without proper testing, even the best waterproofing coatings may not perform well, which can lead to leakage and expensive repairs later.
This guide explains when waterproofing should be tested, the best waterproof test methods, and how to perform a flood test for waterproofing. You will also learn how to check for hidden leaks and which SmartCare products help you achieve reliable long-term protection.
IN THIS ARTICLE
Why Testing Waterproofing Matters
When Should You Test Waterproofing?
Different Methods to Test Waterproofing
Step-by-Step Guide to Performing a Flood Test
How to Check for Hidden Leaks in Walls or Roofs
Recommended Products for Reliable Waterproofing
Common Waterproofing Testing Mistakes to Avoid
What to Do If Your Waterproofing Fails a Test
Final Thoughts: Ensure Lasting Protection with Proper Testing

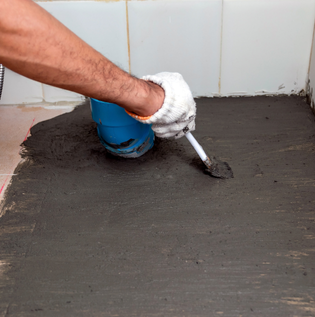

Why Testing Waterproofing Matters
Waterproofing is effective only when the surface is free from gaps, cracks, or weak spots. Testing confirms whether the coating has formed a strong barrier. It also gives peace of mind before you install tiles, flooring, or finishing layers.
The Importance of Quality Checks After Waterproofing
A proper waterproofing testing procedure helps identify small faults that may not be visible to the eye. For example, a hairline crack or a missed corner may not look serious but can cause water seepage during the monsoon. A waterproofing leak test confirms that every part of the surface is sealed correctly.
How Early Detection Prevents Costly Repairs
Fixing leaks after finishing work is much harder and more expensive. Early testing helps you catch problems before they grow. It protects your walls, roof, and floors from long-term damage, ensuring your home stays safe and dry.
When Should You Test Waterproofing?
Timing plays an important role in getting accurate test results. Testing too early may affect the coating, and testing too late may delay your project.
Before Finishing or Tiling Work
Always test waterproofing before installing tiles, wooden flooring, laminates, or any finishing materials. This ensures the surface is leak-proof before it gets covered permanently.
After Completing Waterproofing Coating
Once the coating has dried and cured properly, you can conduct a water test for waterproofing. This helps check the strength of the existing membrane.
During Routine Maintenance Checks
Even after the building is complete, periodic testing helps identify future problems. Regular checks are recommended for terraces, exterior walls, basements, and bathrooms, where moisture is common.

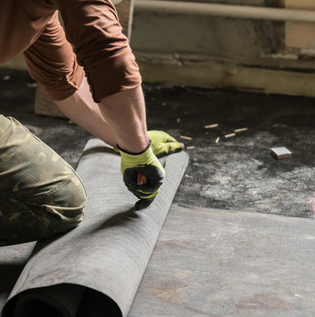

Different Methods to Test Waterproofing
There are several waterproofing test methods used by professionals. Each one serves a different purpose and helps detect specific types of leakage or dampness.
1. Flood Test (Water Ponding Test)
This is the most common method. The flood test for waterproofing involves filling the area with water and observing it for a fixed duration. If there is no leakage, the waterproofing is successful.
2. Spray Test for Exterior Walls
A spray test is often used for wall waterproofing. Water is sprayed at controlled pressure on the exterior wall to check for seepage or damp patches on the inner surface.
3. Moisture Meter or Dampness Test
Moisture meters detect hidden dampness inside walls or floors. This test is useful for checking internal seepage after coating.
4. Electrical Conductivity Test
This method checks the surface for water movement using electrical signals. If water has passed through the membrane, the reading will show conductivity.
5. Infrared or Thermal Imaging Test
Thermal cameras detect temperature differences caused by moisture. This method helps find hidden leaks without damaging the surface.

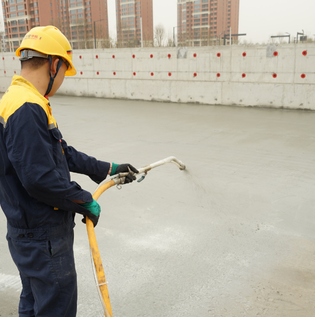

Step-by-Step Guide to Performing a Flood Test
The waterproofing ponding test is one of the most reliable methods for roofs, bathrooms, and large surfaces. Here is how to perform it correctly.
Step 1: Prepare the Area by Sealing Outlets
Before starting, block all drainage outlets or pipes in the testing area. Use plugs or waterproof tape to ensure no water escapes from the drain.
Step 2: Fill the Surface with Water to a Set Level
Fill the area with clean water up to a specific level, usually between two to four inches. Ensure the water spreads evenly across the surface to avoid dry patches.
Step 3: Monitor for Leaks or Dampness for 24 to 48 Hours
Observe the area below or around the testing surface. Check ceilings, walls, and nearby rooms. If water levels drop quickly or if you notice dampness, the waterproofing has failed.
Step 4: Record and Analyze the Results
Once the test duration is complete, note your observations. If there are no leaks, the waterproofing is strong and ready for further work. If leakage is found, the affected area must be repaired and the test repeated.

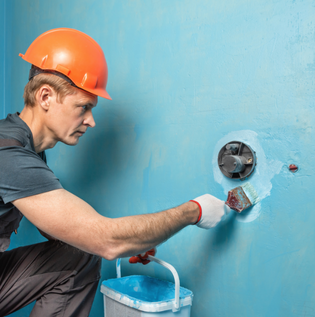

How to Check for Hidden Leaks in Walls or Roofs
Some leaks are not easily visible. Roofs and walls may show internal seepage long before water appears on the surface.
Signs of Internal Dampness and Stains
Look for yellowish stains, peeling paint, or damp corners. These are early signs of hidden leaks that require attention.
Testing with a Moisture Detector
A moisture detector helps measure the water content inside the surface. This tool is very useful for locating the exact spot of seepage.
Inspecting Roof Joints, Corners, and Drainage Points
Leaking roofs often have weak joints or blocked drains. During a waterproofing leak test, inspect these areas carefully. Proper roof waterproofing depends on the condition of these joints.

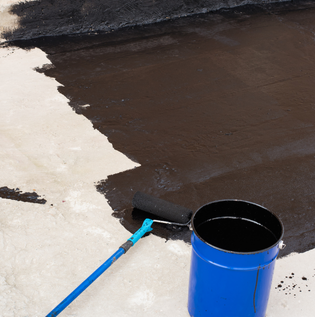

Recommended Products for Reliable Waterproofing
Using quality products ensures that your waterproofing lasts longer and performs well during testing. Asian Paints SmartCare offers advanced waterproofing solutions for various surfaces.
SmartCare Damp Proof for Interior Wall Protection
Ideal for interior wall waterproofing, SmartCare Damp Proof creates a strong barrier against dampness and helps keep the surface dry.
SmartCare PU Roof Coating for Terrace Waterproofing
This is a high-performance coating for roof waterproofing. It forms a flexible and durable layer that resists standing water and weather changes, making it perfect for terraces.
SmartCare Hydroloc for Seepage-Prone Areas
Hydroloc is suitable for internal seepage problems. It absorbs into the surface to create a strong moisture-resistant layer.
SmartCare Crack Seal for Leak Prevention
Cracks often become the starting point of leaks. SmartCare Crack Seal fills these gaps and strengthens the surface, ensuring better waterproofing performance.

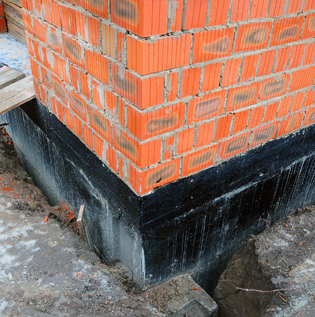

Common Waterproofing Testing Mistakes to Avoid
Many issues arise due to simple mistakes during testing. Avoid these to get accurate results.
Not Allowing Coating to Cure Fully Before Testing
If you test too early, the coating may still be soft. Always follow the recommended curing time before performing any water test for waterproofing.
Skipping Edge or Joint Inspections
Edges and corners are the easiest places for leaks to start. Make sure these areas are properly checked during tests.
Using Uncalibrated Moisture Testing Tools
Incorrect readings can mislead you. Ensure moisture meters are calibrated and in good condition before using them.

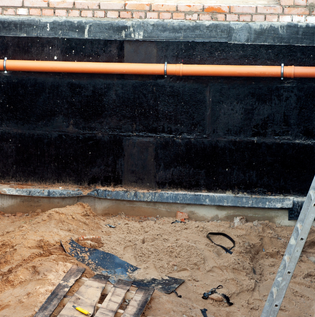

What to Do If Your Waterproofing Fails a Test
A failed test is not the end of the process. It simply means the issue needs to be fixed before moving ahead.
Identify the Affected Area and Root Cause
Inspect the leak to understand whether it came from cracks, gaps, poor application, or weak surface preparation.
Repair Cracks or Weak Spots Before Reapplying Coating
Fix the damaged area using the right product. For example, use SmartCare Crack Seal for cracks or SmartCare Hydroloc for seepage.
Re-Test to Ensure Proper Sealing and Protection
Once the repair is done and the coating is cured, test the area again. This ensures the surface is completely sealed and safe for long-term use.
Final Thoughts: Ensure Lasting Protection with Proper Testing
Testing Is the Key to Long-Term Waterproofing Success
Waterproofing is not complete until it is tested. Proper testing ensures safety, confidence, and durability. It helps prevent future issues and protects the structure from moisture damage.
Choose Trusted Waterproofing Systems Like SmartCare for Guaranteed Results
With the right products and the right waterproofing testing procedure, your home remains protected from leaks and dampness for years. SmartCare solutions by Asian Paints offer dependable performance and long-lasting protection for roofs, walls, and wet areas.
